C Series Temperature Controller
Features
C Series Temperature Controllers — High-Precision PID & Programmable Control
The C Series Temperature Controllers are ARICO’s flagship models designed for applications requiring high-precision PID control, programmable temperature profiles, and industrial communication integration.
Compared with the A Series—intended for general heating-point control—the C Series offers advanced capabilities including PID + Self-Tuning, dual heating/cooling outputs, 16-step program control, multiple input/output options, and full Modbus RTU / ASCII communication, making it ideal for automated and precision-controlled industrial processes.
Since its establishment in 1987, ARICO has dedicated many years to temperature and industrial controller development., The C Series for use in injection molding, extrusion, industrial furnaces, heat-treatment systems, automated production lines, food processing equipment, and other high-demand environments where stable and accurate temperature regulation is essential.
- Dual-output models can do cooling / heating two-way PID controlling
- Set Value (SV) can employ analog signal input to achieve Remote Set Value setting
- 26 types of alarm modes for option ; can be added with broken-line detecting alarm function (HBA)
- Re-transmission function can convert Present Value (PV) or controlling output amount into analog signal output for recorder or other applications
- Provided with manual output mode
- Manual and auto output
- Serial communication function supports RTU and ASCII format of Modbus. The Baud rate can reach as fast as 38,400 bit/s
- Programmed controlling provides 16 temperature levels whose operating intervals and repeat frequency can be planned freely

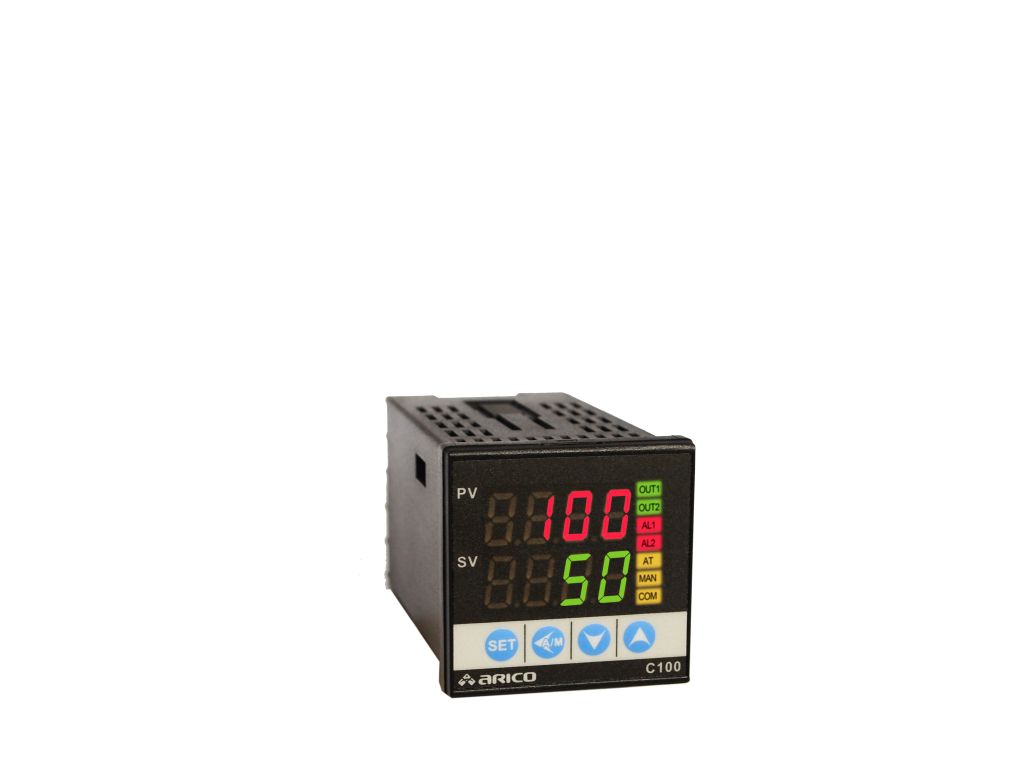

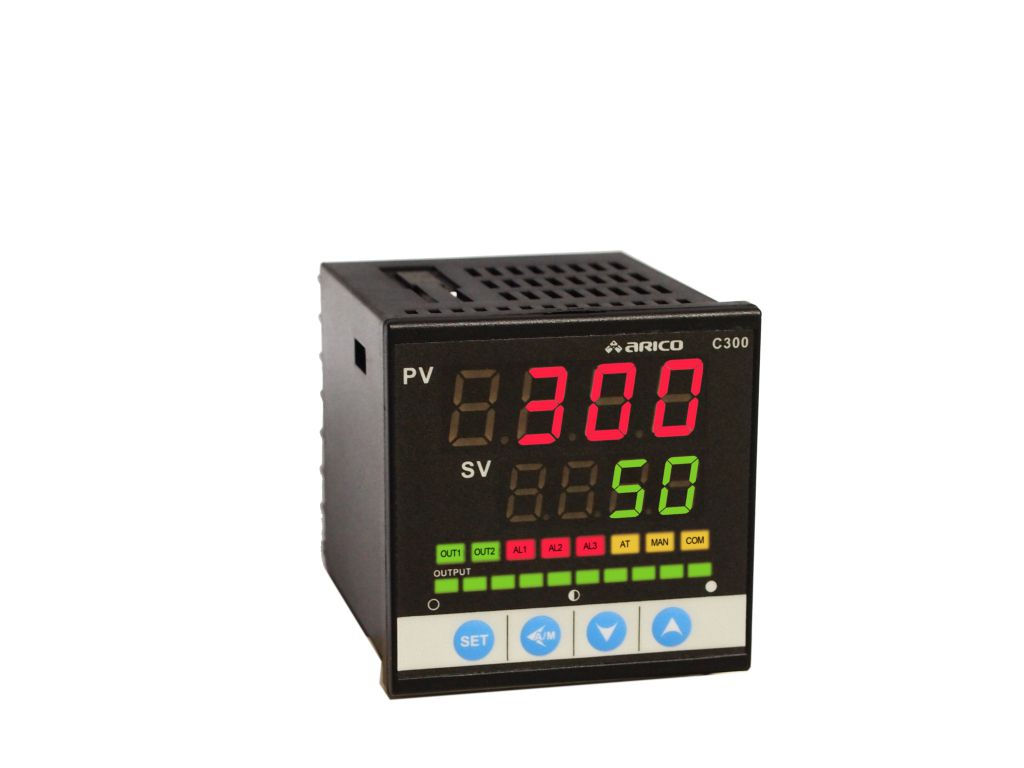

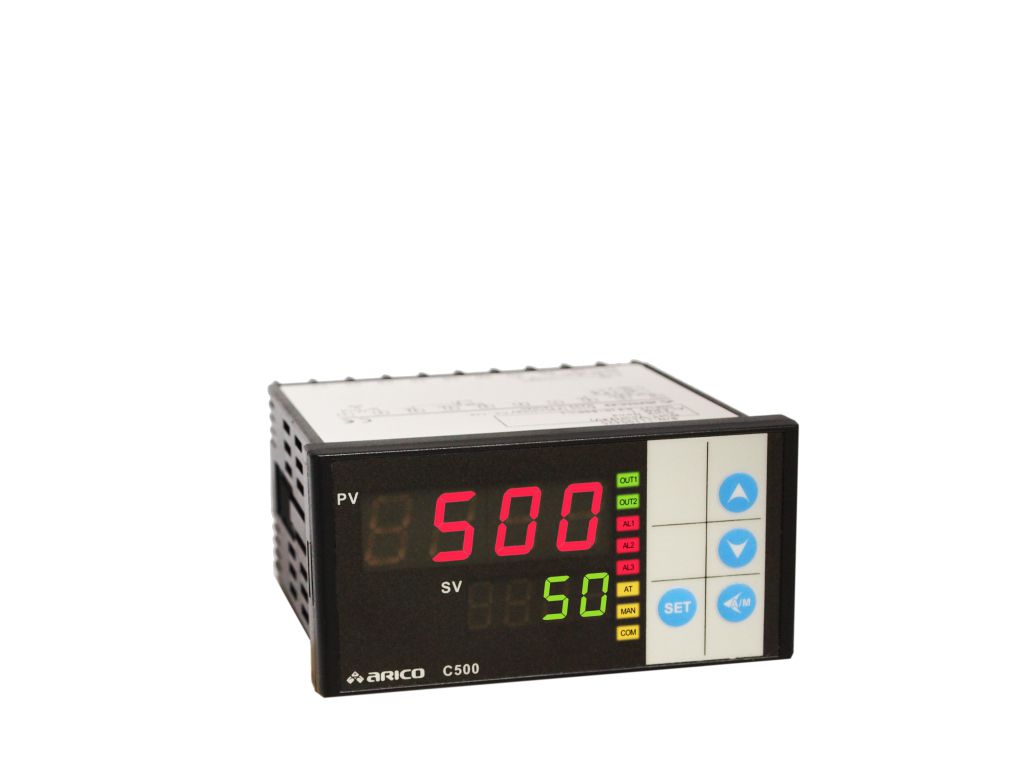

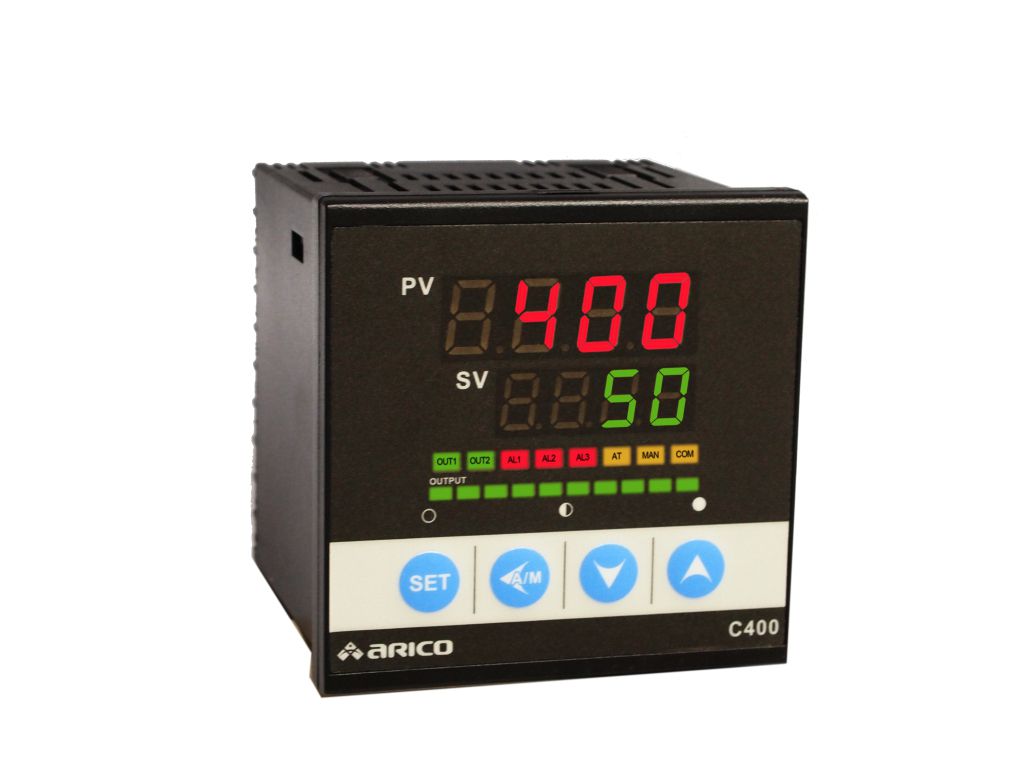

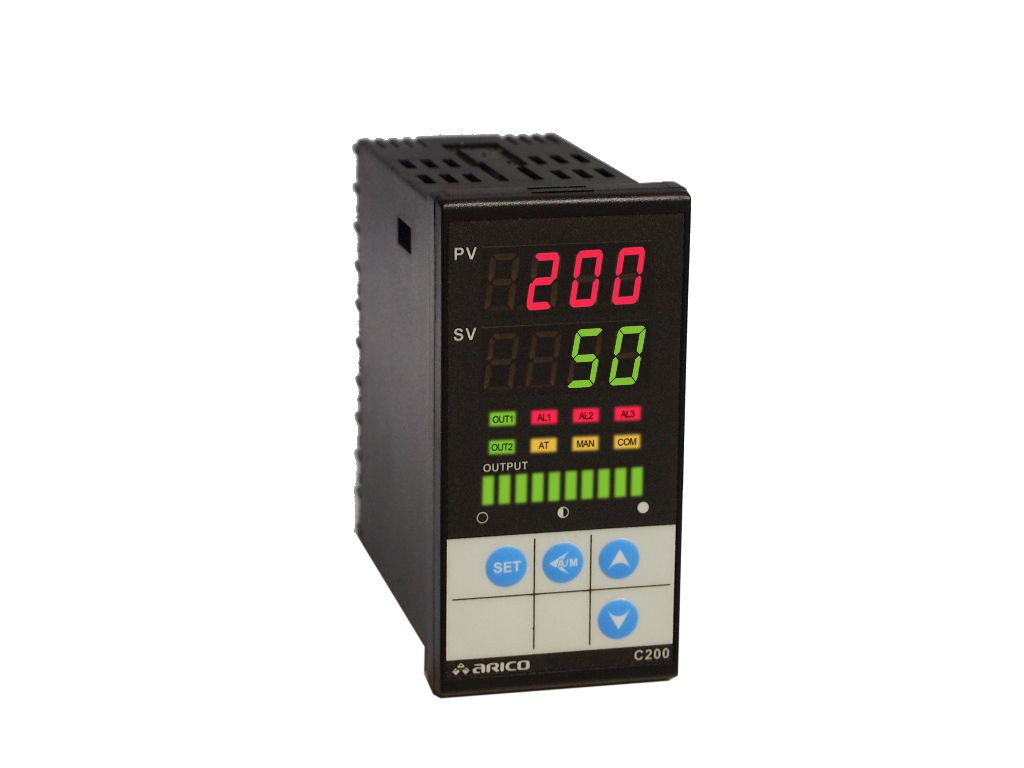

| Model | C100 | C200 | C300 | C400 | C500 | |
|
Dimension W × H Unit：mm |
W48×H48 | W48×H96 | W72×H72 | W96×H96 | W96×H48 | |
| Unit Weight | 130g | 200g | 200g | 280g | 200g | |
| Display Type |
4 digital high brightness and red color 4 digital high brightness and green color |
|||||
| Power Consumption | 4W | 5W | 4W | |||
| Power Supply | AC90~240V(60/50Hz), DC24V(Optional) | |||||
| Storage / Operate | 0~65°C/0~50°C；20~90% RH | |||||
| Data Backup Memory | EEPROM, 10 years | |||||
| Accuracy | 0.3 % Full scale | |||||
| Alarm Output | Relay contact 8A, 250VAC | |||||
| Controlling Measure | ON / OFF, P, PI, PD, PID | |||||
| Approved Standard | CE-T160811N10-E | |||||
| Controlling Output | ||||||
| Relay contact | AC250V/8A | |||||
| Digital Voltage | DC24V/20mA(MAX) | |||||
| Analog Voltage | 0~10V (Input Impedance: 1KΩ Max.) | |||||
| Analog Current | 4 ~20mA (Input Impedance: 600Ω Max.) | |||||
| Input Type | ||||||
| Thermocouple |
J, K, R, S, B, E, N, T, W3, W5, PL-II (Input Impedance: approx. 1KΩ Max.) |
|||||
| RTD | PT-100 (DIN), JPT-100 (JIS) | |||||
| Linear Analog | 0~10mV, 0~20mV, 0~50mV, 4~20mA, 0~10V....see operating instructions | |||||
